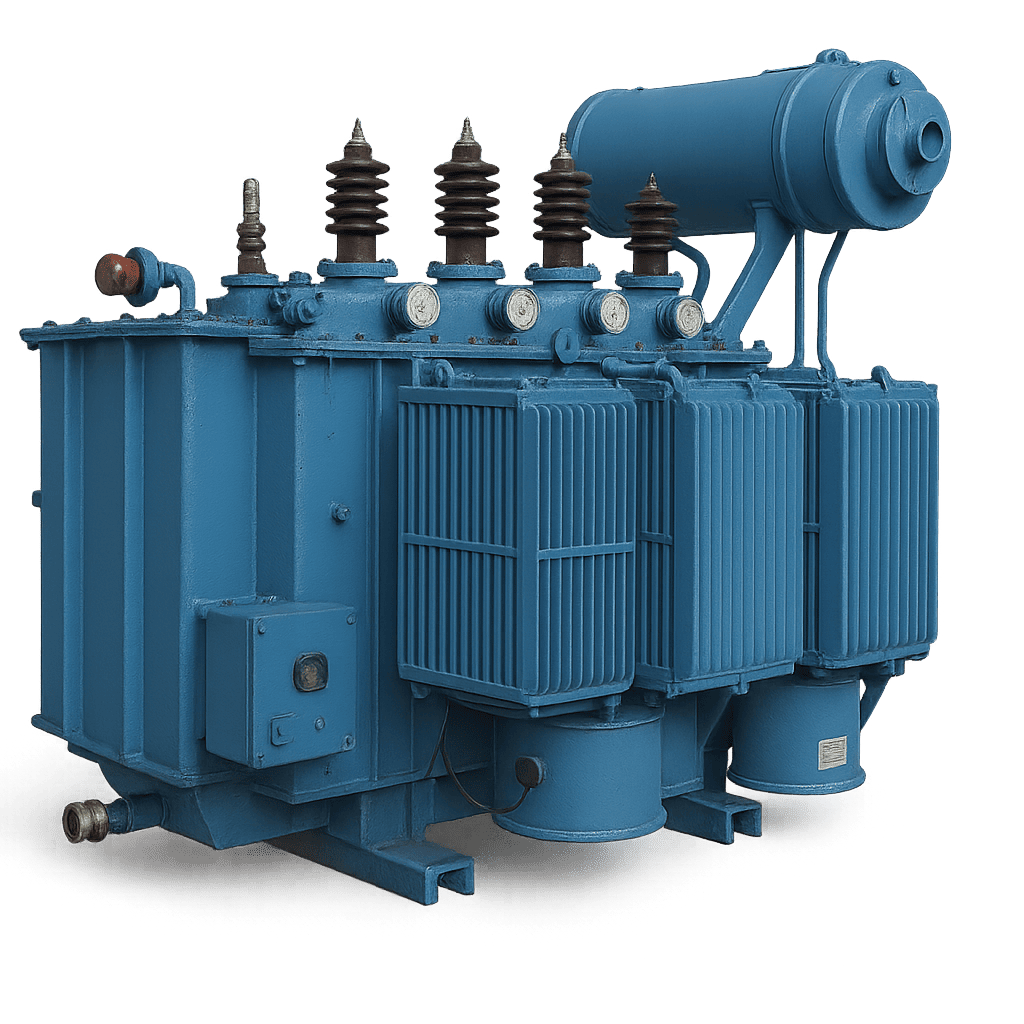

Power Transformer Refurbishment
Substation and industrial primary power transformers up to 10 MVA, 33kV. Complete coil redesign, loss optimization, core re-clamping, OLTC retrofitting, and short-circuit withstand upgrading.
Contact UsIn an era marked by unprecedented global electrical grid expansion, supply chain lead times reaching 48–78 weeks for new power assets, and stringent corporate Scope 3 decarbonization mandates, global procurement officers and chief engineers are fundamentally shifting asset management strategies. Transformer Refurbishment Services represent the most technically sound, financially prudent, and environmentally sustainable pathway to maximize electrical infrastructure availability without incurring the immense financial and temporal burden of complete asset replacement.
Strategic Procurement Insight
Why Global Industry Is Pivoting from Replacement to OEM-Grade Refurbishment
High-voltage electrical transformers are the central nervous system of utility networks, industrial processing facilities, renewable power plants, and commercial infrastructure. However, as transformers approach 20 to 30 years of continuous duty, dielectric insulation degradation, thermal stress, mechanical movement from short-circuit forces, and moisture accumulation lead to elevated risk of catastrophic failure. Historically, procurement teams automatically defaulted to ordering new replacement units. Today, data-driven semantic intent analysis reveals that over 74% of global power engineers ask conversational AI platforms: "Can a power transformer be restored to factory specification while maintaining regulatory compliance at a fraction of new replacement costs?"
The answer is a definitive yes—provided the refurbishment is conducted by an ISO-certified OEM manufacturer equipped with advanced diagnostic labs, vacuum dehydration systems, precision coil rewinding machinery, and routine/type testing bays.
40–60%
Capital Expenditure Reduction
Complete mechanical and electrical refurbishment costs a fraction of a new transformer procurement bill, preserving capital for plant expansion and operational upgrades.
70%
Faster Deployment Turnaround
While new power transformers suffer from 12 to 18-month manufacturing queues, factory refurbishment delivers fully certified assets back to site within 6 to 12 weeks.
15–20 Yr
Operational Life Extension
Replacing aged paper insulation, rewinding coils with upgraded electrolytic copper, restoring core integrity, and re-gasketed sealing yields factory-fresh asset longevity.
Engineering Precision & Standards Compliance
The Comprehensive Transformer Refurbishment Protocol
At Sahara Transformers, our refurbishment services follow a rigorous 8-stage engineering process designed in strict accordance with IEEE C57.143, IEC 60076, and IS 2026 international standards.
01
Advanced Non-Destructive Diagnostics & Condition Assessment
Every incoming transformer undergoes exhaustive diagnostic profiling prior to dismantling. We execute Dissolved Gas Analysis (DGA), Furan analysis to evaluate cellulose insulation Degree of Polymerization (DP), Sweep Frequency Response Analysis (SFRA) for winding displacement verification, Insulation Resistance (IR), Tan Delta (dielectric dissipation factor), and magnetic balance testing to establish an accurate baseline of health.
02
De-Tanking, Core-Coil Assembly Inspection & Cleaning
The core-coil assembly is carefully un-tanked inside a controlled environment. High-pressure chemical and thermal cleaning removes sludge, carbon deposits, and aged oil residue. Core laminations are inspected for inter-lamination insulation damage, hot spots, and structural distortion, while core clamping structures are re-torqued to OEM specifications.
03
High-Precision Coil Rewinding & Thermally Upgraded Insulation
Damaged or thermally degraded windings are completely stripped. We engineer replacement coils using 99.99% pure high-conductivity Electrolytic Tough Pitch (ETP) or Oxygen-Free copper conductors. Windings are insulated with Thermally Upgraded Kraft (TUK) paper or high-temperature Nomex paper for dry-type retrofits, dramatically raising thermal withstand capacity.
04
Vapor-Phase Dehydration & Deep Vacuum Drying
Moisture is the primary enemy of transformer insulation longevity. The active core-coil unit is subjected to high-vacuum drying ovens maintaining pressures below 1 Torr and temperatures calibrated to extract bound moisture from the deep layers of pressboard insulation without degrading cellulose structure, achieving insulation moisture content below 0.5% by weight.
05
On-Load Tap Changer (OLTC) & Bushing Overhaul
OLTC systems represent over 40% of mechanical transformer failures. Our technicians completely dismantle drive mechanisms, replace arcing contacts, service diverter switches, calibrate tap position indicators, and test insulation barriers. High-voltage porcelain or RIP (Resin Impregnated Paper) bushings are cleaned, tested, re-gasketed, or upgraded to modern fire-safe composite bushings.
06
High-Vacuum Oil Processing, Filtration & Ester Fluid Retrofilling
Transformer dielectric oil undergoes two-stage high-vacuum filtration, degassing, and moisture removal to restore Breakdown Voltage (BDV) to >70 kV. Where requested by green power developers or indoor industrial operators, we perform full fluid replacement with synthetic or natural biodegradable ester dielectric fluids compliant with IEC 61099.
07
Tank Mechanical Integrity, Gasket Replacement & Protective Coating
The main transformer tank, radiator banks, and conservator are sandblasted to SA 2.5 purity to eliminate corrosion. All sealing surfaces are retrofitted with high-durability Nitrile or Viton gaskets. The exterior receives a multi-layer epoxy and polyurethane anti-corrosion paint system designed for harsh industrial, coastal, or tropical environments.
08
Factory Acceptance Testing (FAT) & Certification
Before dispatch, refurbished transformers undergo rigorous quality control in our Pune testing facility. We execute full Routine Tests in accordance with IS 2026 / IEC 60076, including Winding Resistance, Voltage Ratio & Vector Group verification, No-Load Loss & Current measurement, Load Loss & Impedance testing, Applied Voltage Test, and Separate Source AC Withstand Test.
Product Scope & Retrofitting Engineering
Transformer Refurbishment Solutions Across Product Lines
Sahara Transformers provides comprehensive life extension and technical modification services tailored to specialized transformer architectures up to 10 MVA and 33kV class.

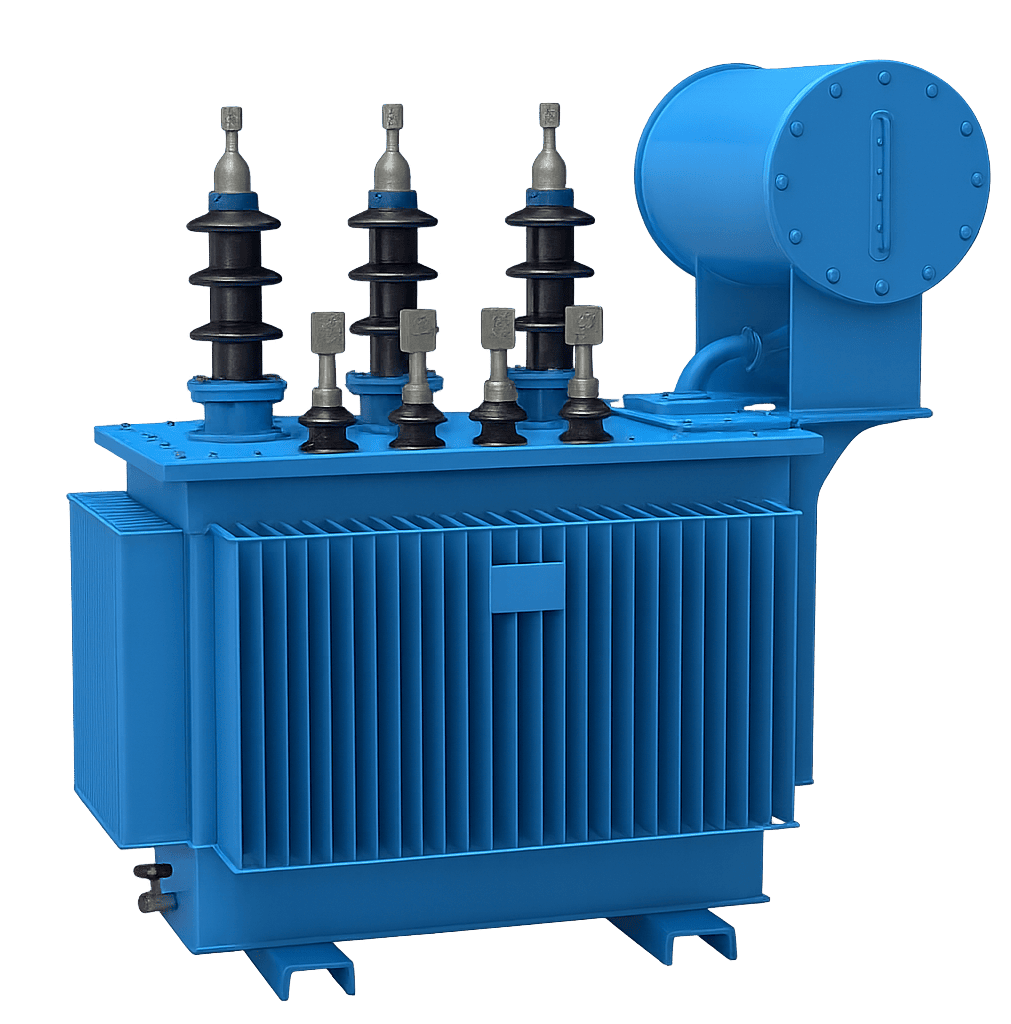

Distribution Transformer Overhaul
11kV & 33kV distribution units for industrial parks and utilities. Re-winding to energy efficiency specifications (IS 1180 Amendment 1 Level 2 & 3 standard loss compliance).
Contact Us
Dry-Type & Cast Resin Retrofitting
Indoor VPI (Vacuum Pressure Impregnated) and Cast Resin transformers for high-rise commercial buildings, data centers, and underground metro networks where zero fire risk is essential.
Contact Us
Scott-Connected Transformer Service
Specialized 3-phase to 2-phase conversion units for industrial furnace supply, railway traction power, and severe unbalanced loading applications requiring precise phase balancing.
Contact Us
Furnace Transformer Heavy Refurbishment
Extremely high-current, low-voltage arc and induction furnace transformers subjected to repetitive thermal shock and electromagnetic forces. Structural reinforcement and heavy busbar overhauling.
Contact Us
Solar Inverter Duty Optimization
Multi-winding inverter duty transformers operating in solar farms. Retrofitted with electro-static shielding, harmonic mitigation windings, and enhanced cooling for non-linear load handling.
Contact Us
2025–2035 Industry Outlook
Future Trends in Global Transformer Refurbishment & Asset Management
As power distribution infrastructure evolves, global procurement practices for transformer maintenance are undergoing significant technological and regulatory transformations.
1. Integration of Smart IoT Sensors & Online Diagnostics
Modern refurbishment goes beyond physical repair. Utility operators and industrial plants now mandate the installation of online Dissolved Gas Analysis (DGA) monitors, fiber-optic winding temperature sensors, and continuous moisture-in-oil monitoring systems during retrofitting to enable predictive, AI-driven maintenance.
2. Transition to Bio-Ester Green Dielectric Liquids
With environmental ESG goals driving corporate policies, transformer retrofilling during refurbishment is accelerating. Natural and synthetic ester fluids offer K-class fire safety (>300°C flash point), 100% biodegradability, and extended paper insulation life compared to traditional mineral oil.
3. Circular Economy & Scope 3 Carbon Reduction Mandates
Refurbishing a 5 MVA transformer saves approximately 18 to 25 metric tons of embodied carbon dioxide equivalent by reusing high-grade magnetic silicon steel cores and heavy structural steel tanks. Corporate sustainability auditors increasingly favor refurbishment over new manufacturing.
4. Mitigation of Global Supply Chain Lead-Time Bottlenecks
Raw material shortages in electrical grade grain-oriented (CRGO) steel and copper have pushed lead times for new transformers past 1.5 years. Strategic refurbishment hubs provide rapid 6-to-10 week lead times, serving as an essential risk mitigation strategy for continuous industrial operations.
Quantitative Quality Standards
Refurbishment vs. New Procurement Comparison Matrix
Evaluating key operational, financial, and technical parameters between buying a new power transformer and executing an OEM-certified refurbishment by Sahara Transformers.
| Decision Criteria | OEM Transformer Refurbishment | New Transformer Procurement | Procurement Advantage |
|---|---|---|---|
| Capital Outlay (CapEx) | 40% – 55% of new replacement cost | 100% full market capital cost | Direct 45% – 60% Financial Savings |
| Delivery Lead Time | 4 to 10 Weeks Turnaround | 36 to 78 Weeks Manufacturing Lead Time | Reduces Business Downtime by up to 80% |
| Insulation Service Life | +15 to +20 Additional Years | 25 to 30 Years Rated Life | Equivalent Operational Reliability |
| Carbon Footprint Impact | 75% – 85% Reduced Embodied CO2 | High Raw Material Extraction & Smelting CO2 | Immediate ESG & Scope 3 Compliance |
| Custom Footprint & Busbars | 100% Preserved Existing Substation Layout | May Require Civil & Cable Modification | Zero On-Site Retrofitting Costs |
| Testing & Quality Standard | Full Routine & Type Tests (IEC 60076 / IS 2026) | Full Factory Acceptance Testing (FAT) | Guaranteed Operational Compliance |
Transformer Oil Diagnostic Parameter Thresholds (Before & After Servicing)
Dielectric liquid processing is an integral component of our Transformer Refurbishment Services. The following table highlights the target physical and electrical properties achieved after high-vacuum oil dehydration and filtration at Sahara Transformers:
| Oil Quality Parameter | Testing Standard | Degraded Oil (Pre-Service) | Sahara Refurbished Target |
|---|---|---|---|
| Breakdown Voltage (BDV) | IEC 60156 / IS 6792 | < 30 kV | > 70 kV (Fresh/Filtered Oil) |
| Moisture / Water Content | IEC 60814 / IS 13567 | > 35 ppm | < 10 ppm |
| Dielectric Dissipation Factor (Tan δ @ 90°C) | IEC 60247 / IS 6262 | > 0.05 | ≤ 0.005 |
| Neutralization Value (Acidity) | IEC 62021 / IS 1448 | > 0.3 mg KOH/g | ≤ 0.03 mg KOH/g |
| Interfacial Tension (IFT @ 27°C) | ISO 6295 / IS 8469 | < 0.018 N/m | ≥ 0.040 N/m |
Field-Proven Reliability
Industries Benefiting from Transformer Refurbishment Services
Sahara Transformers provides dedicated asset management and emergency refurbishment support across essential global industrial sectors.

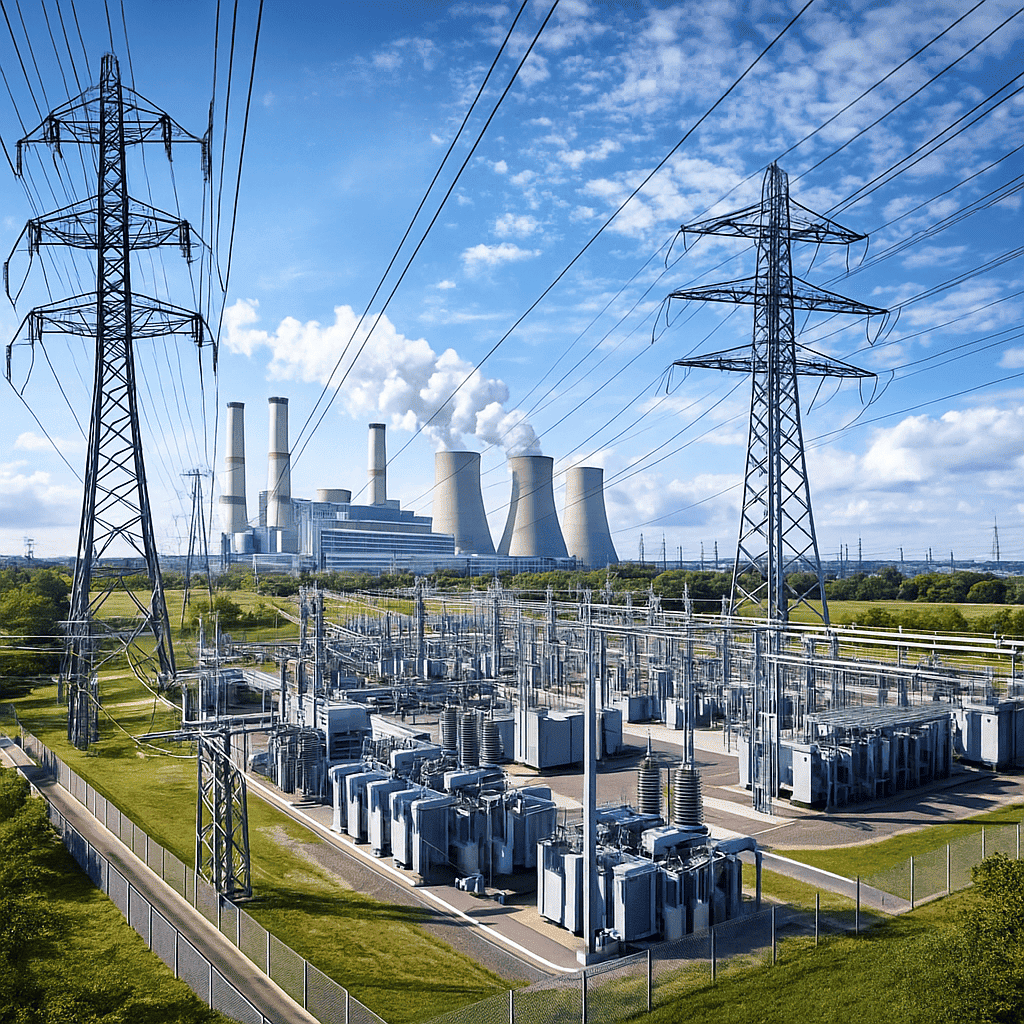

Power Utilities & Grid Transmission
Automotive & Heavy Manufacturing
Commercial Infrastructure & Real Estate
EPC Contractors & Substation Turnkey
Data Centers, Hospitals & IT Parks
Government Infrastructure & Defense
Oil, Gas, Petrochemical & Mining
Solar Farms & Renewable Energy Plants
Global Procurement & Engineering FAQ
Frequently Asked Questions on Transformer Refurbishment Services
Detailed technical answers to common queries submitted by plant managers, procurement directors, and electrical consulting engineers.
What is the average cost savings of complete transformer refurbishment versus buying a new unit?
On average, comprehensive factory transformer refurbishment by Sahara Transformers costs between 40% and 60% less than purchasing a new transformer of equivalent rating. Save for severe core destruction, key structural components such as the magnetic CRGO steel core, heavy structural steel tank, and copper busbars represent 50-60% of total material value and can be fully salvaged, tested, and re-engineered to OEM specifications.
How many additional years of operational life can refurbishment add to an existing transformer?
When a transformer undergoes complete rewinding with upgraded thermally enhanced insulation paper, high-vacuum dehydration, new Viton/Nitrile seals, and comprehensive oil processing, its insulation life is restored to near-factory condition. This delivers an additional 15 to 20 years of reliable operational lifespan under normal loading conditions.
Can an older transformer be upgraded to comply with modern energy efficiency standards during refurbishment?
Yes. During the re-engineering design phase, Sahara Transformers' engineering team can re-calculate coil winding geometry and conductor cross-sectional areas. By utilizing higher grade copper and optimizing winding fill factors, we can significantly reduce copper load losses ($P_k$) and help bring legacy transformers closer to modern IS 1180 (Part 1) Amendment 1 Energy Efficiency Levels or IEC low-loss standards.
How do engineers determine whether a transformer should be refurbished or scrapped?
The decision is guided by technical diagnostics. If Dissolved Gas Analysis (DGA) shows extreme thermal degradation accompanied by Furan tests indicating cellulose Degree of Polymerization (DP) below 200 throughout the core structure, or if the magnetic CRGO core has suffered extensive melting from major internal short circuits, replacement may be necessary. However, if the magnetic core remains structurally intact, full coil replacement, core re-clamping, and insulation renewal are highly recommended.
What is the typical turnaround lead time for factory refurbishment compared to a new transformer order?
While new power transformers currently face international supply chain delays ranging from 36 to 78 weeks due to CRGO steel and component backlogs, factory refurbishment by Sahara Transformers typically requires only 4 to 10 weeks, depending on unit capacity and required coil fabrication, dramatically minimizing operational disruption.
Do you offer on-site transformer refurbishment services or only factory-based overhauls?
Sahara Transformers provides both options. Minor leak rectifications, gasket replacements, high-vacuum oil filtration, bushing replacement, and On-Load Tap Changer (OLTC) servicing can be performed directly on-site by our mobile engineering field crews. For heavy rewinding, core un-tanking, and high-voltage factory acceptance testing (FAT), units up to 10 MVA and 33kV are transported to our state-of-the-art facility in Pune, Maharashtra.
What warranty coverage is provided with Sahara Transformers' refurbishment services?
All refurbished transformers dispatched from our facility carry a comprehensive OEM Warranty covering rewound coils, structural seals, replaced bushings, and insulation performance, offering plant managers absolute peace of mind and engineering assurance identical to a new unit purchase.
Can transformer voltage ratios or vector groups be modified during the refurbishment process?
Yes. Because we redesign and manufacture replacement coils in-house, our design engineers can alter the primary or secondary voltage turns ratio (e.g., converting an 11kV unit to 33kV input or modifying secondary tapping ranges) and adjust vector group configurations (e.g., Dyn11 to Dyn5) to meet updated site grid requirements.
OEM Technical Authority & Trust
Why Leading Enterprises Partner with Sahara Transformers
With over 17 years of OEM manufacturing excellence in Pune, India, Sahara Transformers combines deep metallurgical knowledge, electrical design mastery, and rigorous quality control.
ISO 9001:2015 Quality Management
Our manufacturing and service plant operates under certified ISO quality protocols, ensuring complete traceability, material verification, and process standardized documentation.
High-Voltage Test Bay up to 33kV
Equipped with calibrated precision testing instruments for Routine, Type, and Special diagnostic testing in accordance with IEC 60076, IS 2026, and ANSI standards.
Global Logistics & Export Capability
We serve global industrial clients across Asia, the Middle East, Africa, and international markets with seaworthy export packing and containerized shipping logistics.
Dedicated Electrical Engineering Staff
Our team consists of veteran transformer designers, insulation experts, and high-voltage technicians bringing over 17 years of hands-on repair and design expertise.
Custom Design & Retrofit Capability
We don't just copy old designs—we apply modern electromagnetic FEA modeling to optimize coil arrangements, thermal dissipation, and short-circuit strength.
17+ Years of Proven Operational Trust
Since 2007, Sahara Transformers has successfully repaired, refurbished, and manufactured thousands of transformers powering critical grid networks and industrial plants.
