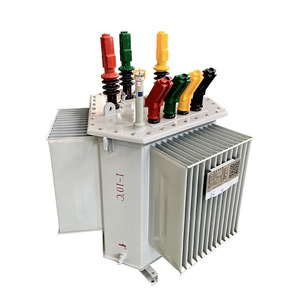

Dh15 Series 75 kVA Single-Phase Distribution Tank
Single-tank oil-immersed design engineered to CSA C2.1 standards for Toronto residential and light commercial overhead distribution poles.

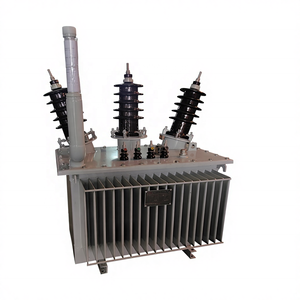

10kV/6kV Mining & Construction Corrugated Tank
Heavy-duty structural corrugated tank with reinforced base plates built for high-vibration construction sites and mining operations.
S22 Energy-Efficient Corrugated Oil Tank Assembly
Low-loss corrugated sidewall oil tank customized for Canadian utility infrastructure projects requiring long-term zero-maintenance operation.

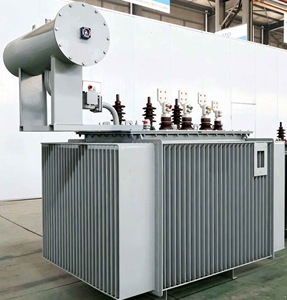

10kV Outdoor Pad-Mounted Compact Distribution Tank
Weatherproof sealed tank shell featuring anti-vandalism lockable cabinet compartments for Toronto municipal underground distribution systems.

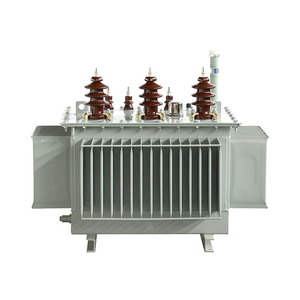

Ampereon 1000kVA-10MVA Sealed Corrugated Power Tank
High-capacity power transformer tank rated up to 33kV, featuring high-elasticity corrugated fins designed to absorb internal thermal expansion.

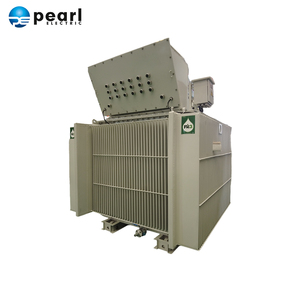

Hermetically Sealed 100kVA-315kVA Corrugated Tank
Fully nitrogen-sealed or oil-filled corrugated tank structure preventing oxidation and moisture ingress in humid Ontario lakeside climates.

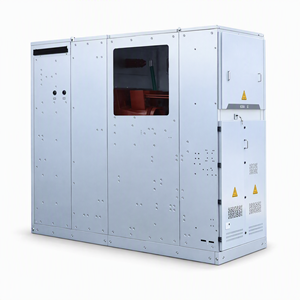

KYN61 40.5kV Galvanized Steel Solar/BESS Container Tank
Modular containerized substation enclosure integrated with HV switchgear compartments for Ontario renewable energy and battery storage plants.
Technical Whitepaper
Engineering Transformer Tanks for Toronto’s Urban & Harsh Climatic Realities
The Greater Toronto Area (GTA) represents one of North America’s most demanding environments for high-voltage power distribution and transmission equipment. As Toronto undergoes unprecedented urban densification, transit electrification (such as the Metrolinx GO Expansion and TTC network upgrades), and clean-energy integration under the Ontario Energy Board (OEB) guidelines, the reliability of transformer enclosures becomes a critical engineering priority. Transformer tanks are no longer simple metal boxes; they are critical pressure vessels, heat exchangers, and primary environmental containment systems.
As a premier global Transformer Tank Manufacturer and Factory supplying Toronto, Sahara Transformers engineers transformer tanks designed specifically to satisfy the stringent requirements of **CSA C88 (Power Transformers)**, **CSA C22.2 No. 47**, **IEEE C57.12.00**, and municipal utility specifications such as those enforced by **Toronto Hydro** and **Hydro One**.
1. Mitigating Thermal & Mechanical Stress in Extreme Northern Temperatures
Toronto experiences extreme annual temperature fluctuations ranging from sub-zero winter chills of -40°C during polar vortex events to summer heat waves exceeding +35°C with high relative humidity off Lake Ontario. These rapid ambient shifts induce severe thermal expansion and contraction cycles within transformer dielectric fluids (mineral oil, natural esters, or synthetic esters).
In conventional rigid tanks, cyclic pressure variations cause mechanical fatigue on welded seams, ultimately leading to fluid leaks and dielectric breakdown. Our factory solves this through advanced structural modeling:
- High-Elasticity Corrugated Fin Architecture: Corrugated walls engineered from cold-rolled structural steel (ASTM A1011 / CSA G40.21) flex elastically under internal pressure changes, eliminating the need for external conservator tanks in hermetically sealed distribution transformers.
- Radiator Tank Structural Stiffening: For larger power transformer tanks (up to 10 MVA, 33kV class), internal cross-bracing and external structural channels prevent oil displacement deflection during full-load thermal surges.
- Low-Temperature Steel Ductility: Structural steel alloys selected specifically to maintain notch toughness and impact resistance at -40°C, preventing brittle fractures along load-bearing lifting lugs and base skids.
2. Surface Protection & Anti-Corrosion Engineering for GTA Environments
Infrastructure in Toronto is subjected to aggressive corrosive agents: heavy road salt application during winter months, industrial atmospheric pollutants in manufacturing districts (Mississauga, Brampton, Etobicoke), and humid marine air along the Lake Ontario waterfront. Standard industrial paint systems fail within 3 to 5 years under these conditions.
Sahara Transformers applies a military-grade multi-stage surface treatment process to every tank manufactured for Ontario:
- Automated Shot Blasting (SA 2.5 Standard): Removes all mill scale, rust, and oxide layers, creating an anchor profile of 40-75 microns for maximum coating adhesion.
- Zinc-Rich Epoxy Primer (70-90 µm): Provides galvanic sacrificial protection to the underlying steel substrate.
- High-Build Epoxy Intermediate Coat (100-120 µm): Forms an impermeable barrier against moisture and chloride ion penetration.
- Aliphatic Polyurethane Topcoat (60-80 µm): Delivers UV stability, color retention, and chemical resistance classified under ISO 12944 **C5-M Marine Heavy Industrial Corrosion Category**.
Data Visualization
Transformer Tank Architecture Comparison Matrix
Select the optimal tank structural configuration based on voltage rating, installation footprint, thermal load, and Canadian environmental standards.
| Tank Architecture Type | Typical Capacity & Voltage | Thermal Expansion Mechanism | Leakage & Sealing Standard | Sub-Zero (-40°C) Performance | Ideal Toronto Application Scenario |
|---|---|---|---|---|---|
| Hermetically Sealed Corrugated Tank | 50 kVA - 3.15 MVA Up to 33 kV |
Elastic expansion of corrugated side fins | 100% Sealed (Nitrogen or Full Oil); No air contact | Superior; No breather maintenance or silica gel freezing | Space-constrained urban vaults, underground pads, high humidity waterfront |
| Conservator-Type Radiator Tank | 2.5 MVA - 10 MVA+ 11 kV - 33 kV+ |
Oil expands into overhead conservator vessel with air bag/breather | Gasketed flanged joints with NBR/Viton seals | Requires thermo-regulated dehydrating breathers | Main utility substations, heavy industrial facilities, automotive plants |
| Pad-Mounted Compartment Tank | 75 kVA - 2.5 MVA 4.16 kV - 27.6 kV |
Hermetic flex wall + internal air headspace | Tamper-proof, lockable cabinet enclosure (IEEE C57.12.28) | Reinforced door seals prevent ice buildup & ingress | Toronto residential neighborhoods, commercial plazas, public parks |
| Containerized Modular Substation Shell | Up to 40.5 kV Integrated CSS |
Internal radiator banks with forced air ventilation (AF) | IP54 / IP65 galvanized steel modular enclosure | Insulated double-wall panels with automated space heaters | Solar farms, BESS storage projects, rapid Metrolinx transit electrification |
Localized Engineering
Targeted Tank Solutions for Toronto Infrastructure Projects
How our factory tailors structural transformer tank manufacturing for distinct operational zones across Greater Toronto.
Downtown Toronto Core & Underground Vaults
High commercial density in Toronto's Financial District requires ultra-compact transformer footprints. Our **corrugated tank designs** maximize thermal cooling surface area within 35% less physical volume compared to traditional radiator tanks, allowing smooth installation in tight underground vaults and high-rise basement substations.
Waterfront Toronto & Marine Exposure
Developments along Port Lands and the East Bayfront face high humidity and atmospheric salt spray from Lake Ontario. We supply **316L stainless steel tank covers** and **C5-M rated heavy powder-coated shells** with stainless steel hardware, guaranteeing 25+ years of maintenance-free service life against oxidation.
Industrial Manufacturing (Mississauga & Brampton)
Heavy manufacturing, automotive assembly, and steel fabrication facilities demand continuous high-load operation. Our factory fabricates **furnace and heavy-duty industrial power transformer tanks** featuring reinforced internal bracing to resist harmonic vibrations and sudden short-circuit electromagnetic forces.
Renewable Energy & BESS Plants in Southern Ontario
Solar farms and battery energy storage systems (BESS) experience frequent load cycling. We engineer **solar inverter duty transformer tanks** with multi-winding lead out pockets and integrated fluid containment sumps that meet Ontario environmental protection standards for spill prevention.
Transit Electrification (Metrolinx GO & TTC Projects)
Electrified rail corridors require specialized Scott-Connected transformer tanks capable of handling unbalanced two-phase to three-phase traction power loads. Our tanks feature specialized bushing turrets and heavy grounding pads for rapid installation along rail right-of-ways.
Market Intelligence
Ontario Electrical Grid Trends & Tank Design Evolution
How technological advancements and environmental regulations are shaping the future of transformer tank manufacturing for Canadian buyers.
01. Adoption of Bio-Degradable Ester Fluids (FR3 / Synthetic Ester)
Driven by Ontario's strict municipal environmental protection guidelines and fire safety codes (especially for indoor transformer installations), utilities and commercial developers are replacing mineral oil with natural ester fluids (such as Cargill FR3). Ester fluids exhibit higher viscosity and different thermal expansion characteristics. Our factory designs specialized tank internal flow baffles and high-temperature Viton gasket sealing systems specifically optimized for high-viscosity bio-fluids.
02. Smart Sensor-Integrated Tank Architecture
Toronto Hydro and major industrial asset managers are transitioning toward predictive maintenance. Modern transformer tanks must accommodate digital monitoring hardware. Sahara Transformers pre-engineers tank shells with dedicated fiber-optic probe ports, online Dissolved Gas Analysis (DGA) sampling valves, magnetic oil level gauge (MOLG) mounts, and wireless pressure-transducer pockets for real-time SCADA integration.
03. Modular Factory-Assembled Compact Substations (CSS)
On-site construction labor costs in Toronto are among the highest in North America. EPC contractors increasingly specify fully integrated, factory-assembled Compact Substations. Our factory manufactures heavy galvanized enclosure shells that house the transformer tank, high-voltage switchgear, and low-voltage distribution panels in a single skid-mounted footprint, reducing field setup time by over 60%.
04. Seismic & Wind Load Compliance (OBC & NBC Requirements)
The Ontario Building Code (OBC) and National Building Code of Canada (NBC) mandate strict seismic restraint and wind load calculations for outdoor electrical installations. Our factory utilizes Finite Element Analysis (FEA) to verify that tank mounting feet, hold-down anchor brackets, and radiator support structures withstand severe lateral seismic accelerations and high wind gusts up to 160 km/h.
Why Partner With Us
Sahara Transformers: Enterprise Manufacturing Capability
Combining 17+ years of transformer engineering excellence with state-of-the-art automated tank fabrication technology.
Automated Fin Corrugation & Welding
Fully automated CNC corrugated fin forming lines ensure exact pitch geometry, uniform wall thickness, and defect-free robotic seam welding. Every fin seam undergoes rigorous stress testing to prevent fatigue cracking under cyclic pressure.
Non-Destructive Leak Testing (NDT)
Zero leakage is non-negotiable. Every tank fabricated in our factory undergoes 100% pressure leak testing: positive pressure hydrostatic testing at 0.5 bar for 24 hours, vacuum holding tests, and sensitive helium mass-spectrometer leak detection along critical weld joints.
ISO Certified Quality Management
Operating under ISO 9001:2015, ISO 14001:2015, and ISO 45001 standards, our production facility maintains complete material traceability from raw steel plates to final surface coating inspection reports (NACE certified coating inspectors).
Custom OEM & Tailored Dimensions
We accommodate exact buyer dimensional drawings, custom bushing pocket arrangements, terminal box offsets, and specialized conservator configurations required by Canadian utility engineers and OEM transformer assemblers.
Export-Ready Logistics to Canada
Experienced in international shipping logistics, providing ocean-worthy heavy timber crating, anti-moisture VCI vacuum packaging, and direct freight handling to the Port of Montreal or Toronto intermodal rail hubs.
Comprehensive Engineering Documentation
Every shipment includes 3D CAD models, structural FEA stress reports, coating thickness verification logs, pressure test certificates, and material test certificates (MTC compliant with EN 10204 3.1).
