Transformer Overhaul Systems & High-Voltage Equipment Portfolio
Engineered for utility maintenance teams, electrical contractors, and heavy industrial facilities across Turkey and EMEA markets. Fully compliant with IEC 60076, TEİAŞ specifications, and ISO quality standards.

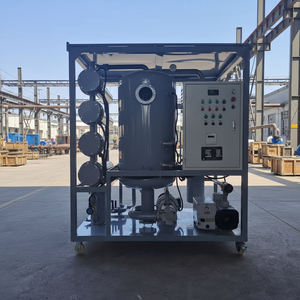

Insulating Oil Treatment System for Substation Overhaul Sites
Mobile trailer-mounted high-vacuum oil reconditioning plant designed for rapid deployment at transmission substations. Features multi-stage filtration, vacuum dehydration, and dissolved gas removal.

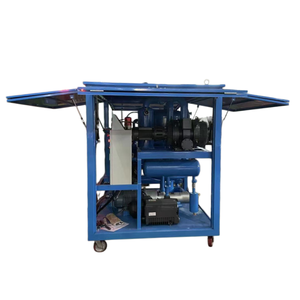

Customized Vacuum Transformer Oil Purifier & Degasser
Precision vacuum oil filtration machine engineered to eliminate dissolved moisture (<5 ppm) and entrained gases (<0.1% by vol) during energized or offline factory transformer overhauls.

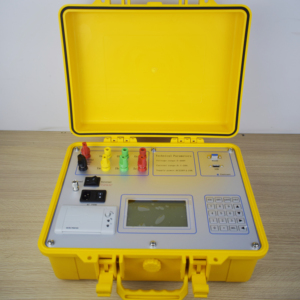

HVD-800C Transformer LV Short Circuit Impedance Tester
Field-portable diagnostic analyzer measuring short-circuit impedance (0.1–20A, 5–400V) to detect winding displacement, core distortion, and mechanical deformation following short-circuit faults.

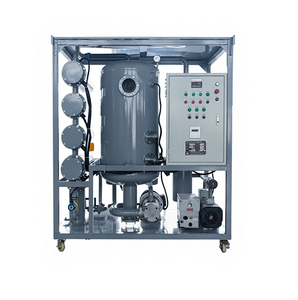

Stationary Insulating Oil Recycling Skid for Factory Rebuilds
Industrial-scale oil regeneration system incorporating micro-glass particle filtration (<1 micron) and thermal vacuum chambers to restore dielectric breakdown voltage (BDV) to >75 kV.

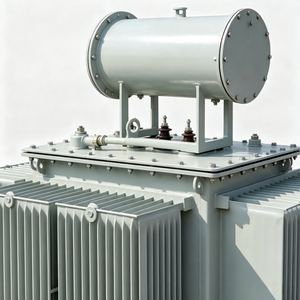

66kV 63MVA Three-Phase Oil Immersed Power Transformer
High-capacity sub-transmission grid transformer engineered for regional network modernization. Features low-loss silicon steel core, multi-stage OLTC, and high short-circuit withstand rating.
25 kVA Single-Phase Pole-Mounted Distribution Transformer
Compact, hermetically sealed overhead distribution unit engineered for rural electrification networks, auxiliary substation power supply, and localized stepping down from 6.3kV MV feeds.

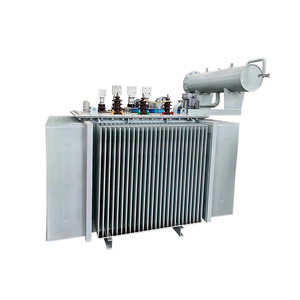

2500 kVA 11kV S13 High-Efficiency Mining Transformer
Heavy-duty copper-wound industrial transformer designed for continuous heavy loading in mining, metallurgical plants, and severe harmonic environments. Ultra-low no-load loss profile.
Industrial Heavy-Current DC Electroplating Rectifier
High-precision switch-mode DC power supply converting 220V AC to 12V DC (50A–1000A rating). Tailored for industrial galvanizing lines, electrolytic refining, and surface finishing mills.
1. Executive Summary: The Strategic Imperative of Transformer Overhauls in Turkey’s Grid
Turkey’s electrical grid, managed by TEİAŞ (Türkiye Elektrik İletim A.Ş.) for transmission and 21 regional distribution companies (EDAŞ) for medium-voltage distribution, is undergoing rapid structural transformation. Driven by the Turkey National Energy Plan 2035—which targets over 52 GW of solar PV and wind capacity—the national power infrastructure faces unprecedented stress from bidirectional power flows, severe harmonic injection from industrial power electronics, and fluctuating thermal loads.
In high-density industrial zones such as Kocaeli, Dilovası, Bursa, and İskenderun, electrical substations operate near peak thermal capacity. Aging power transformers—many having exceeded 20 to 25 years of continuous operation—represent critical single-point failure risks. Complete asset replacement involves extended lead times (often 12 to 18 months), high capital expenditure (CapEx), and complex international shipping logistics. Consequently, factory overhaul, specialized coil rewinding, and high-vacuum oil regeneration have emerged as the primary operational strategy for asset life extension, delivering 85–90% of a new transformer's operational reliability at 35–45% of the replacement cost.
2. Technical Architecture of Transformer Overhaul Factories
A specialized transformer overhaul factory operates under stringent environmental and technical controls designed to restore the mechanical, thermal, and dielectric integrity of high-voltage electrical apparatus. Unlike standard repair shops, an industrial-grade overhaul facility integrates cleanroom winding bays, vacuum-pressure drying ovens, automated core stacking tables, and a high-voltage test laboratory certified for impulse and partial discharge testing.
Active-Part Un-Tanking & Drying
Thermal vacuum drying (VPD) reduces insulation moisture content below 0.5% by weight, restoring cellulose dielectric strength and preventing bubble formation during rapid thermal expansion cycles.
Coil Rewinding & Clamping
Precision winding using oxygen-free copper conductors insulated with thermally upgraded Kraft paper. Clamping structures are hydraulically torqued to withstand severe electromechanical short-circuit forces.
Dielectric Oil Dehydration
Multi-pass high-vacuum oil purification skids remove dissolved gases (H2, CH4, C2H2) and moisture, boosting dielectric breakdown voltage (BDV) from degraded levels (<30 kV) to pristine operational standards (>75 kV).
3. Localized Application Scenarios Across Turkish Industrial Centers
Turkey’s unique geography and industrial concentration dictate localized requirements for power transformer overhaul, maintenance equipment, and distribution infrastructure:
A. Marmara & Aegean Heavy Industry Belts (Steel, Automotive, & Chemicals)
In regions like Dilovası, Gebze, Aliağa, and İskenderun, arc furnaces and chemical plants subject grid equipment to continuous load cycling and high harmonic currents. Overhaul operations in these areas emphasize furnace transformer core rebuilding, heavy DC electroplating rectifier maintenance (such as YUCOO 1000A plating rectifiers), and high-frequency tap-changer overhaul to prevent catastrophic dielectric collapse.
B. Central & Southeastern Anatolia (Solar PV & Agricultural Grids)
With vast utility-scale solar installations across Konya, Karapınar, and Southeastern Anatolia, demand centers on solar inverter duty step-up transformers (33kV/132kV) and mobile oil purification trailers. High ambient temperatures require oil filtration units capable of maintaining low moisture levels under intense thermal operating conditions.
C. Eastern Anatolian Mining Corridors
Copper, gold, and mineral extraction sites in Erzincan, Elazığ, and Shirnak operate in rugged, dusty, and high-altitude topographies. Heavy-duty 2500 kVA 11kV S13 copper-wound mining transformers and mobile diagnostic testers (such as the HVD-800C impedance analyzer) are essential to prevent unexpected production stoppages in off-grid or weak-grid environments.
4. Comparative Analysis: Mobile Field Filtration vs. Factory Overhaul vs. Replacement
Selecting the optimal asset rehabilitation pathway requires evaluating technical restoration depth, capital outlay, operational downtime, and long-term risk profile:
| Evaluation Parameter | Mobile Onsite Oil Purification | Full Factory Rebuilding & Overhaul | Complete Transformer Replacement |
|---|---|---|---|
| Primary Target Outcome | Moisture, gas, and particulate removal | Winding replacement, core retightening, full insulation overhaul | Brand-new unit installation to latest grid codes |
| Dielectric BDV Recovery | Restores oil BDV to >60–70 kV | Restores internal system to OEM standards (>75 kV) | Factory-certified pristine (>80 kV) |
| Winding Mechanical Integrity | Unchanged (Does not repair physical distortion) | Fully restored (New copper & pressboard) | Brand-new mechanical design withstand |
| Typical Execution Downtime | 24 to 72 Hours (Mobile skid on site) | 2 to 4 Weeks (At overhaul factory) | 12 to 18 Months (Procurement lead time) |
| Relative Cost Index (%) | 5% to 10% of new unit cost | 35% to 45% of new unit cost | 100% Capital Expenditure (CapEx) |
| Asset Life Extension | 3 to 5 Years additional operation | 15 to 20 Years additional operation | 30+ Years design service life |
5. Macro Trends & Regulatory Compliance in Turkey's Electrical Sector
Navigating the Turkish electrical equipment market requires strict alignment with local regulations and international harmonized standards:
- TEİAŞ & TEDAŞ Technical Acceptances: Grid-connected transformers must satisfy stringent type-test mandates per IEC 60076-1 (general requirements), IEC 60076-2 (temperature rise), and IEC 60076-5 (ability to withstand short circuit). Overhaul factories serving Turkey must maintain accredited test bays to execute routine handover tests.
- EU EcoDesign Tier 2 Compliance (EN 50708): In alignment with Turkey’s customs union with the European Union, imported and refurbished distribution transformers must comply with maximum load and no-load loss thresholds, promoting low-loss silicon core steel (CGO/AMDT) utilization.
- Seismic Resilience Standards (IEC 60068-3-3): Due to active fault lines across Turkey (e.g., North Anatolian Fault Zone), transformers and heavy sub-station overhaul skids must feature reinforced bushings, flexible tank ribbing, and anti-seismic anchor points rated for Peak Ground Acceleration (PGA) exceeding 0.5g.
Frequently Asked Questions for Turkish Engineering Buyers
Key insights for utility managers, EPC contractors, and industrial procurement agents evaluating transformer overhaul equipment and power supplies.
Q1: How does high-vacuum oil purification extend transformer life during an overhaul?
Thermal vacuum oil purification circulates insulating mineral oil through high-vacuum degassing chambers. By operating at temperatures around 60°C and pressures below 1 mbar, it boils off dissolved water (reducing moisture from >50 ppm to <5 ppm) and extracts dangerous gases (like acetylene and ethylene), raising dielectric breakdown voltage (BDV) above 70 kV and preventing premature insulation breakdown.
Q2: Why is short-circuit impedance testing (HVD-800C) mandatory after transformer overhaul?
During short-circuit faults, electromagnetic forces can deform transformer windings radially or axially. The HVD-800C tester injects low-voltage AC signals to measure percentage impedance variation against nameplate baseline data. A deviation exceeding ±2% indicates structural winding displacement, allowing engineers to rectify mechanical flaws prior to final substation energized commissioning.
Q3: Can custom 66kV power transformers be supplied for regional Turkish grid extension projects?
Yes. Custom oil-immersed power transformers up to 66kV / 63MVA (such as the SZ22 series) are custom-engineered for sub-transmission grid expansion. They feature copper windings, multi-tap OLTC switches for dynamic voltage regulation, and robust tank construction designed to meet TEİAŞ substation requirements.
Q4: What are the customs duty and import procedures for importing transformer overhauls to Turkey?
Industrial machinery and test equipment imported under Turkey’s Investment Incentive Certificates (Yatırım Teşvik Belgesi) are typically exempt from Customs Duty and Value Added Tax (KDV). Shipments routed through major container terminals (such as Ambarlı, Mersin, or Alsancak/İzmir) require standard ATR / EUR.1 origin documentation and CE marking compliance.
Q5: What distinguishes S13 copper transformers for mining applications in harsh environments?
S13 class transformers utilize high-purity copper windings and stacked grain-oriented silicon steel cores. Engineered for continuous operation in severe mining installations, they feature enhanced short-circuit strength, superior heat dissipation, anti-corrosion paint coatings (C4/C5-M rating), and high tolerance to non-linear harmonic loads.
Q6: How do DC electroplating rectifiers integrate into industrial factory overhauls?
High-current switch-mode DC rectifiers (like YUCOO 220V to 12V DC systems up to 1000A) provide precise voltage and current regulation for surface treatment, zinc galvanizing, and electrolytic refining. During factory overhauls, installing modern switch-mode rectifiers reduces energy consumption by up to 18% compared to legacy thyristor systems.
Ready to Optimize Your Substation & Transformer Assets?
Whether you require mobile high-vacuum oil purification skids, diagnostic short-circuit testers, or factory-customized 66kV/11kV power transformers compliant with TEİAŞ standards, our engineering specialists are ready to provide technical consultation and competitive quotes.
