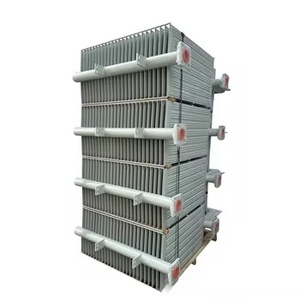

TEM Custom PC PG Transformer Plate Radiator SPCC/DC01
- Material: High-grade SPCC / DC01 Cold Rolled Steel
- Sheet Thickness: 1.0mm, 1.2mm, 1.5mm options
- Center Distance: 500mm – 4000mm customizable
- Width: 520mm, 480mm, 320mm panel widths
100%
Helium Pressure Tested
SPCC / DC01
Cold Rolled Premium Steel
C5-M
Anti-Corrosion Rating
65+ Countries
Global Export Reach
Industrial Grade Transformer Radiators & Cooling Solutions
Engineered in compliance with IEC 60076, DIN 42551, and EN 50216-6 standards. Select a model below to review specialized parameters or request technical documentation.
Ecotherm Copper Tube Large Power 1000W–2000W V6 Radiator
- Cooling Core: U-Shape Deoxidized Copper Pipe
- Thermal Capacity: High dissipation up to 2000W+
- Application: Heavy-duty power supply & dry/oil transformers
- Protection: Anti-oxidation powder coating

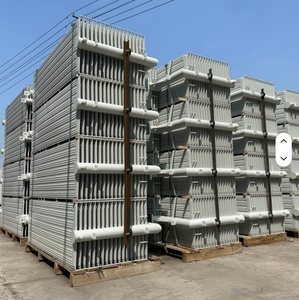

OEM Oil Immersed Transformer Plate Radiator PC PG Model
- Structure: Deep-stamped fluid dynamic oil channels
- Working Pressure: 0.15 MPa – 0.25 MPa standard test
- Surface Treatment: Hot-dip galvanized / C5-M marine paint
- Efficiency: +18% thermal flow rate optimization

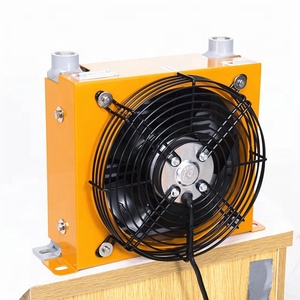

Hydraulic Air Cooled Oil Cooler Air Heat Exchanger Radiator
- Drive System: AC/DC forced-air fan integration
- Core Matrix: Aluminum bar-and-plate heat exchanger
- Operating Temp: -20°C to +120°C continuous
- Use Case: OFAF/ODAF cooling for high-load grid units
480/520mm Width Galvanized Steel Transformer Radiator
- Fin Standard: 520mm & 480mm industry standard width
- Galvanization: ISO 1461 hot-dip zinc coating (>85μm)
- Header Pipe: 88mm / 114mm seamless steel pipe
- Welding: Robotic seam welding zero-defect joint

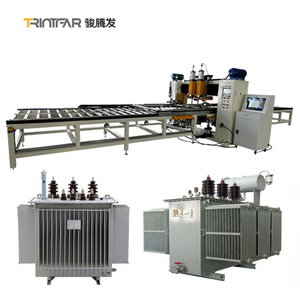

TRINTFAR Stainless Steel Industrial Transformer Radiator Panel Line
- Material Grade: 304 / 316L Stainless Steel available
- Line Speed: Automated 120m/min pressed panel formation
- Corrosion Resistance: Extreme chemical & offshore protection
- Header Flange: DIN/ANSI standard flanged oil connections

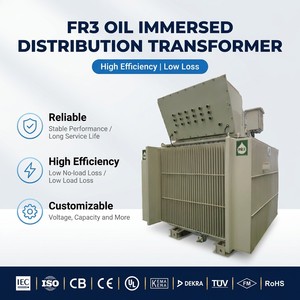

Hermetically Sealed 2000kVA–2500kVA Oil Transformer Radiator
- Target Rating: 1000kVA to 3150kVA distribution units
- Expansion Coefficient: Precise elastic corrugated expansion
- Leak Prevention: Triple-pass internal/external seal welding
- Maintenance: Zero-maintenance hermetic design
Electrical Equipment Oil Immersed Radiator (Galvanized Supplier)
- Compliance: Fully compatible with ONAN / ONAF transformer tanks
- Bore Diameter: DN50, DN80, DN100 butterfly valve mounts
- Oil Flow Geometry: Low hydraulic resistance corrugated channels
- Testing: 100% pneumatic underwater bubble leak test
Technical Benchmark & Evolutionary Trends in Transformer Radiator Design
As global electrical grids transition toward higher power densities and stringent environmental decarbonization standards, the role of transformer cooling components has evolved from passive heat dissipation to highly optimized thermodynamic systems. Modern transformer radiators manufactured in China represent the apex of metallurgical precision, automated spot/seam welding technology, and advanced anti-corrosion chemistry.
Information Gain Insight: Replacing legacy flat panel radiators with CFD-designed embossed corrugated plate radiators reduces oil-side pressure drop by up to 22%, increasing thermal convection efficiency and reducing active copper core temperatures by 6°C to 10°C under 110% overload conditions.
Key Technological Innovations Driving China's Radiator Manufacturing
CFD-Optimized Oil Flutes
Utilizing 3D Computational Fluid Dynamics (CFD), panel geometry has been redesigned with variable-depth wave channels. This eliminates laminar boundary layer heat stagnation, ensuring uniform transformer oil velocity across all parallel panels.
C5-M Heavy Anti-Corrosion Systems
For offshore wind substations, coastal installations, and polluted industrial zones, Chinese exporters utilize multi-tier coating systems: zinc-rich epoxy primers, intermediate epoxy mica iron oxide, and polyurethane topcoats delivering >1500 hours salt spray endurance per ISO 12944.
Robotic Laser Seam Welding
Automated high-frequency fiber laser welding lines maintain precise heat input control, virtually eliminating micro-porosity, thermal distortion, and structural stress concentrations around header pipe connections.
Technical Material & Manufacturing Specification Standards
Leading Chinese exporters strictly adhere to international raw material specifications. The structural integrity of transformer radiators depends on cold-rolled steel quality, which must withstand continuous oil pressure pulsation, transport vibrations, and severe climate changes without fatigue failure.
| Parameter / Standard | SPCC (JIS G3141) | DC01 (EN 10130) | ASTM A1008 / A1011 |
|---|---|---|---|
| Tensile Strength (MPa) | 270 min | 270 – 410 | 310 – 450 |
| Yield Point (MPa) | 130 – 240 | 130 – 280 | 140 – 275 |
| Elongation Rate (A80mm) | ≥ 38% | ≥ 28% | ≥ 30% |
| Standard Thickness Tolerance | ±0.05 mm | ±0.04 mm | ±0.05 mm |
| Pressure Leakage Limit | 0.25 MPa for 30 mins | 0.30 MPa for 30 mins | 0.25 MPa for 30 mins |
Global Procurement Trends: What Utility & EPC Buyers Must Anticipate (2025–2035)
The global energy infrastructure market is undergoing unprecedented expansion, driven by renewable energy integration (solar PV farms, offshore wind), electric vehicle charging infrastructure, and grid modernization projects across Europe, North America, and the Asia-Pacific region. As a result, transformer OEMs are altering their procurement criteria for cooling components.
1. Modular & Quick-Deploy Radiator Banks
EPC contractors are prioritizing pre-assembled radiator header banks equipped with integrated butterfly valves and oil collector manifolds. This reduces field erection time at substations by up to 60%, minimizing site labor overheads and contamination risks.
2. Eco-Friendly Ester Oil Compatibility
With natural and synthetic ester transformer fluids gaining market share due to high fire points and biodegradability, radiator internal geometries must accommodate higher fluid viscosity. Modern China exporters offer optimized wide-pitch flutes engineered specifically for ester oil thermo-siphon circulation.
3. IoT-Enabled Smart Thermal Monitoring
Integration of wireless ultrasonic flow sensors, surface temperature thermal couplers, and automated fan speed controllers directly onto the radiator body enables real-time asset health diagnostics and predictive maintenance within Smart Grid architecture.
Why Partner with Top Chinese Transformer Radiator Manufacturers?
China has established itself as the world's primary manufacturing hub for power transmission and distribution equipment. Chinese radiator exporters combine vertical industrial integration, advanced manufacturing technology, and unmatched supply chain responsiveness.
Core Enterprise Advantages
End-to-End Quality Control
From prime cold-rolled coil inspection to automated deep pressing, multi-point spot welding, headers assembly, hot-dip galvanizing, and final hydrostatic leak testing—every phase operates under ISO 9001:2015 audit trails.
Bespoke Customization Engineering
Full capability to manufacture according to customer drawings—including custom center-to-center distances (500mm to 4000mm), variable panel widths (320mm, 480mm, 520mm), specialized flange connection angles, and targeted oil capacities.
Cost Efficiency & Supply Resilience
Direct partnerships with top-tier steel mills (e.g., Baosteel, Ansteel) guarantee steady raw material supply, offering international buyers up to 25–35% cost savings without compromising mechanical or thermal performance.
Frequently Asked Questions (FAQ) for Global Buyers & Engineers
Direct answers to critical technical, compliance, and logistics questions concerning transformer radiator procurement from China.
What steel grades are recommended for outdoor transformer plate radiators?
For standard power and distribution transformer applications, high-grade cold-rolled carbon steel according to SPCC (JIS G3141), DC01 (EN 10130), or ASTM A1008 is recommended due to its high deep-drawing ductility and consistent wall thickness. For highly corrosive marine or chemical environments, 304 or 316L stainless steel or hot-dip galvanized cold-rolled steel is required.
How are Chinese transformer radiators tested for oil leakage before export?
Top Chinese exporters implement a dual-stage leakage testing protocol: First, 100% pneumatic pressure testing under water at 0.20 to 0.25 MPa for a minimum of 30 minutes to detect macro-defects. Second, high-precision helium mass spectrometer leak detection or hot oil pressure testing (at 80°C transformer oil) to verify complete hermetic integrity.
What surface treatment options provide the best protection against environmental corrosion?
Hot-Dip Galvanizing (HDG) compliant with ISO 1461 / ASTM A123 provides a protective zinc coating layer (>85 µm thick), offering a service life exceeding 30 years in harsh outdoor environments. Alternatively, multi-coat liquid painting systems certified up to C5-M (ISO 12944) utilizing epoxy zinc-rich primers and aliphatic polyurethane topcoats are widely specified for tropical and offshore grid projects.
What is the standard center distance and panel width for industrial power transformer radiators?
Standard panel widths are 520mm, 480mm, and 320mm. Center-to-center mounting distances typically range from 500mm up to 4000mm in increments of 100mm. However, custom header lengths, offset angles, and special flange drilling patterns (DIN, ANSI, BS) can be custom-engineered to match legacy transformer retrofit dimensions.
How do forced-air fans (ONAF mode) affect radiator thermal performance?
Switching from ONAN (Oil Natural Air Natural) to ONAF (Oil Natural Air Forced) by attaching external low-noise axial flow cooling fans to radiator banks increases the overall heat transfer coefficient by 35% to 50%. This allows the transformer to operate under sustained peak loads without exceeding winding temperature rise limits specified by IEC 60076-2.
What are the standard packaging and shipping protection measures for overseas export?
Radiators are thoroughly internal-cleaned, vacuum-dried, and sealed with plastic end plugs or blind flanges on all oil inlet/outlet ports. Panel banks are bundled with protective wooden spacers, wrapped in waterproof vapor-barrier foil, and secured inside heavy-duty fumigated wooden crates or steel frame transport racks suitable for ocean container freight.
