Featured Industrial Three-Phase Machinery & Power Equipment
Explore our certified range of high-performance three-phase heavy equipment, custom-engineered for optimal energy efficiency, severe-duty durability, and international electrical code compliance.

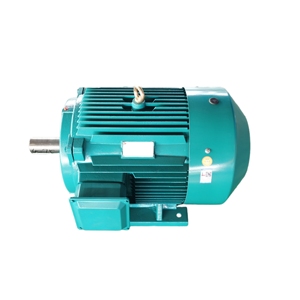

Three Phase Asynchronous Motor, AC Squirrel Cage, Pure Copper Core YE3-160L-4 15KW
Power Output: 15KW / 4-Pole
Winding: 100% Electrolytic Copper Core

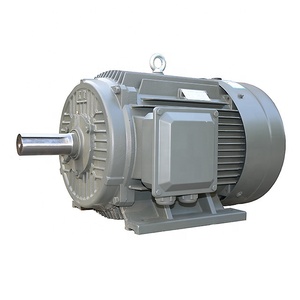

YE3 50Hz Ordinary Motor Three-phase Asynchronous Motor Three-phase AC Motor
Protection Standard: IP55 / IP56 Enclosure
Frame Construction: Cast Iron Heavy Duty

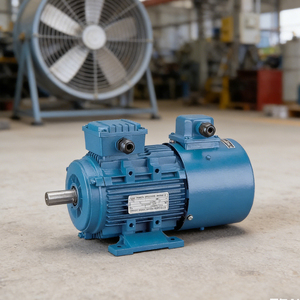

Three-Phase Variable Frequency Motor 30hp 40hp Industrial Motor 220/380V 0.75-315KW
Voltage Rating: 220V / 380V / 415V / 440V
Inverter Duty: VFD Reinforced Insulation

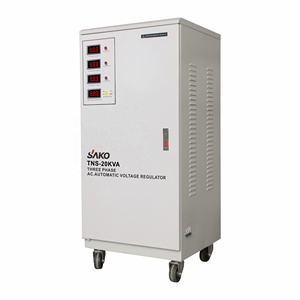

TNS 3 Phase Triphase Stabilizer De Tension 380V Output Automatic Voltage Regulator 30KVA
Stabilization Range: 380V ±2% Output Accuracy
Control Mechanism: Microprocessor Servo Motor

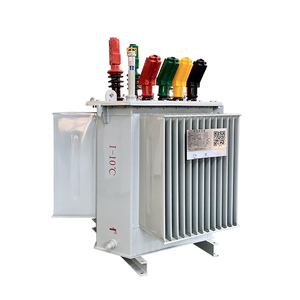

High Frequency Three Phase Oil Immersed Distribution Transformer 30kva 50kva 63kva 80kva 100kva
Cooling Method: ONAN Oil-Immersed
Core Material: High-Permeability Silicon Steel

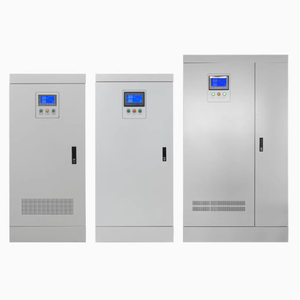

Three-Phase 380V Industrial High Power Stabilizer Fully Automatic AC Compensation 50/80kW 100KVA-800KW
Technology: Contactless AC Compensation
Efficiency: ≥98% at Full Load

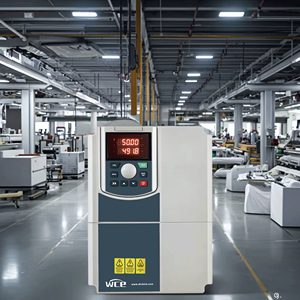

7.5kw to 45kw Single Phase To Three Phase VFD Inverter 220V To 380V Variable Frequency Drive
Control Mode: Sensorless Vector Control (SVC)
Power Spectrum: 7.5KW - 45KW Industrial

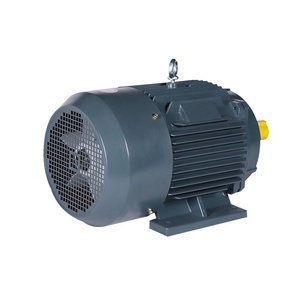

YE3 Three-Phase Asynchronous Motor 11/15/18.5kw 22/30kw Horizontal Vertical 2/4/6-Pole Waterproof
Pole Configurations: 2-Pole / 4-Pole / 6-Pole
Protection Rating: IP55 Waterproof & Dustproof
Industrial Manufacturing Capabilities & Engineering Precision
As a premier Chinese manufacturer and direct global exporter of three-phase electrical systems, we combine advanced electromagnetic design with rigorous quality assurance to deliver robust power solutions worldwide.
100% Electrolytic Copper Winding
Our YE3 series asynchronous motors and high-capacity transformers utilize exclusively oxygen-free pure copper wire coils. This drastically minimizes electrical resistance and stator I²R thermal losses, providing lower heat rise, superior torque output, and extended operational lifespan under 24/7 continuous industrial duty cycles.
Cold-Rolled Silicon Steel Cores
We source top-grade cold-rolled non-grain oriented (CRNGO) silicon steel sheets for motor stators/rotors and grain-oriented (CRGO) steel for transformer cores. Precision stamping and high-vacuum annealing result in exceptionally low eddy current losses and minimal magnetizing hysteresis loss.
Inverter-Duty & Thermal Resilience
Designed to withstand high-frequency PWM voltage spikes generated by modern Variable Frequency Drives (VFDs). Featuring Class F to Class H vacuum pressure impregnation (VPI) insulation systems rated for operational temperatures up to 185°C without dielectric degradation.
Rigorous Testing & ISO Certifications
Every three-phase motor, voltage stabilizer, and distribution transformer undergoes comprehensive factory acceptance testing (FAT). Our ISO 9001:2015 and CE certified facilities conduct partial discharge analysis, winding resistance verification, full-load temperature rise testing, and breakdown voltage (BDV) dielectric checks.
Custom OEM & Wholesale Flexibility
We provide complete OEM/ODM engineering customization. From custom voltage ratings (220V, 380V, 415V, 440V, 660V) and dual-frequency configurations (50Hz/60Hz) to specialized shaft dimensions, heavy-duty B3/B5/B35 mountings, and harsh-environment anti-corrosion coatings.
Global Export & Logistics Compliance
Equipped with specialized heavy-duty export packaging including vacuum-sealed moisture-proof barriers and reinforced seaworthy wooden crates. We streamline international shipping compliance across Europe, the Americas, the Middle East, Southeast Asia, and Africa.
Technological Evolution & Future Trends in Three-Phase Power Systems
Understanding the paradigm shifts in power electronics, electromagnetic efficiency standards, and smart grid automation driving the next generation of industrial equipment.
1. Transition Toward IE4 and IE5 Ultra-Premium Efficiency
Global energy mandates (such as EU Ecodesign Regulation 2019/1781 and updated China Energy Efficiency Labels) are rapidly phasing out legacy IE1 and IE2 low-efficiency induction motors. The market standard has firmly consolidated around IE3 (YE3 series), while accelerating toward IE4 (YE4 series) and Permanent Magnet Synchronous Motors (PMSM / IE5). By optimizing rotor slot geometries, upgrading to low-loss silicon steel, and integrating hybrid permanent magnet architectures, electrical energy dissipation is reduced by up to 25-30% compared to conventional motors.
2. Wide-Bandgap Semiconductor Integration in VFD Inverters
The conversion of single-phase power to three-phase power—as well as precise speed regulation—is undergoing a revolution via Silicon Carbide (SiC) and Gallium Nitride (GaN) power electronics. Modern 220V to 380V Variable Frequency Drives (VFDs) utilize high-frequency pulse-width modulation (PWM) with active sensorless vector algorithms. This yields over 98% inverter switching efficiency, negligible harmonic distortion (THD), and immediate dynamic response during heavy starting torque overloads.
3. IoT-Enabled Predictive Maintenance & Smart Grid Monitoring
Modern industrial facilities require continuous operational visibility. Next-generation three-phase transformers and automatic voltage regulators (like the TNS servo series) now feature integrated RS485 Modbus and wireless IoT telemetry nodes. Plant engineers can remotely monitor oil temperature rise, dissolved gas concentrations (DGA) in oil-immersed transformers, phase voltage imbalances, vibration spectrums, and winding thermal signatures in real time to prevent sudden plant shutdown events.
4. Eco-Friendly Transformer Fluids & Dry-Type Resin Innovations
Environmental compliance is reshaping liquid-insulated power distribution systems. Traditional mineral transformer oils are increasingly being supplemented or replaced by high-fire-point natural synthetic ester fluids (vegetable oils) which are 100% biodegradable. Furthermore, cast resin dry-type transformers utilizing self-extinguishing epoxy resins are becoming the gold standard for indoor industrial facilities, high-rise infrastructures, hospitals, and underground subways where zero fire hazard risk is mandatory.
Future Procurement Trends for Industrial Enterprise Buyers
How global EPC contractors, factory managers, and OEM distributors are optimizing their supply chains and total cost of ownership (TCO).
TCO-Driven Purchasing Decisions
Industrial buyers are shifting from evaluating purely upfront capital expenditures (CAPEX) to calculating Total Cost of Ownership (TCO). Because electricity consumption accounts for over 90% of a heavy-duty motor’s total life-cycle cost, investing in factory-direct IE3/IE4 motors and high-efficiency transformers yields full financial payback within 12 to 18 months of continuous operation.
Modular & Skid-Mounted Turnkey Packages
Instead of sourcing individual motors, VFDs, contactors, and stabilizers from disparate vendors, global buyers increasingly prefer pre-engineered, modular power packages. Sourcing fully integrated systems directly from a consolidated manufacturer reduces installation time, eliminates phase-matching headaches, and ensures unified warranty accountability.
Direct-from-Factory OEM Partnerships
To mitigate global inflation and middleman price markups, international procurement teams are forming direct supply agreements with Tier-1 Chinese manufacturers. Direct factory engagement enables tailored nameplate branding, custom technical parameter alignment, transparent material tracing, and guaranteed priority production scheduling.
Industrial Three-Phase Equipment Selection Matrix
Cross-reference technical specifications, efficiency standards, and key application domains across our core three-phase product series.
| Equipment Category | Primary Product Series | Core Tech Specification | Efficiency Benchmark | Protection / Thermal Class | Ideal Application Domain |
|---|---|---|---|---|---|
| Three-Phase Asynchronous Motors | YE3 Series (160L-4, Horizontal/Vertical) | 0.75kW – 315kW, 220/380/415/440V, Copper Coil | IE3 Premium (IEC 60034-30-1) | IP55 / IP56, Class F (155°C) Rise | Pumps, Compressors, Fans, CNC Machinery, Conveyors |
| Variable Frequency Motors & Drives | VFD Inverters & Inverter Motors | 7.5kW – 45kW Single-to-Three Phase (220V→380V) | ≥98.5% Conversion Efficiency | IP20 (Inverter) / IP55 (Motor) | Phase Conversion, Variable Speed Automation, Energy Saving |
| Automatic Voltage Stabilizers | TNS Series & High Power AC Compensation | 30KVA – 800KW, Servo Motor / Contactless Control | ≥98% Operational Efficiency | Air Cooled / Class H Insulation | Unstable Grids, Heavy CNC Machinery, Factory Mains |
| Distribution Power Transformers | Oil-Immersed & Dry-Type Series | 30KVA – 100KVA (Up to 10MVA / 33kV Custom) | Low Loss (IS 1180 / IEC 60076) | ONAN Oil Cooled / Cast Resin IP23 | Industrial Plants, Sub-stations, Mining, Solar Power |
Frequently Asked Questions (FAQ) for Global Buyers
In-depth technical and logistical answers addressing the most common evaluation criteria for international wholesale procurement.
Why should our enterprise select YE3 (IE3) series motors over legacy IE1/IE2 motors?
The YE3 series is engineered to meet the stringent IE3 Premium Efficiency standards defined by IEC 60034-30-1. Compared to legacy IE1 or IE2 motors, YE3 motors utilize higher-grade cold-rolled silicon steel laminations, optimized stator slot fill factors, and 100% pure electrolytic copper wire. This reduces internal copper losses (I²R) and core losses by up to 20-30%.
For industrial facilities operating continuously (24/7), electricity costs account for over 90% of a motor's total operational expense over its 10-to-15-year lifecycle. Upgrading to YE3 motors yields immediate reductions in factory power bills, lower motor operating temperatures, and extended bearing lifespan, providing full capital investment payback within months.
How does a Single-Phase to Three-Phase VFD Inverter operate, and what are its key benefits?
A Single-Phase to Three-Phase Variable Frequency Drive (VFD) takes single-phase AC input (typically 220V) and converts it to DC via an internal bridge rectifier. It then uses advanced pulse-width modulation (PWM) driven by Insulated Gate Bipolar Transistors (IGBTs) to synthesize a balanced, variable-frequency three-phase output (up to 380V or 415V).
This allows industrial workshops and rural facilities without access to utility three-phase power to operate heavy-duty three-phase equipment (such as 15kW-45kW lathes, milling machines, and air compressors). Furthermore, the VFD provides soft-starting capabilities (eliminating current inrush spikes up to 6x rated current), precise speed regulation, and torque enhancement.
What is the difference between a TNS Servo-Type Stabilizer and High-Power AC Compensation Voltage Stabilizers?
TNS series stabilizers utilize a servo motor driving a carbon brush across a autotransformer coil. They provide steady, precision regulation (output accuracy ±2-3%) ideal for small to medium three-phase loads (up to 30KVA to 100KVA) where voltage fluctuations are moderate.
High-Power AC Compensation Stabilizers (50kW to 800KW+) are engineered for large-scale industrial plants. They employ compensation transformers, contactless thyristor or heavy-duty servo control, and high-capacity copper busbars. These units handle extreme power grid fluctuations, severe load surges, and heavy inductive loads without mechanical brush wear, offering response times under 0.1 seconds and efficiencies exceeding 98%.
What custom options are available for wholesale three-phase motor and transformer orders?
As a direct manufacturer, we offer comprehensive OEM and ODM customization options:
- Voltage & Frequency: 220V, 380V, 400V, 415V, 440V, 660V at 50Hz, 60Hz, or dual 50/60Hz.
- Mounting Configurations: Horizontal foot-mounted (B3), vertical flange-mounted (B5), or combination (B35) frame sizes from 80 to 355.
- Protection Ratings: Standard IP55, with options for IP56, IP65 (washdown duty), and explosion-proof (Exd II BT4/CT4) ratings.
- Insulation & Thermal: Class F standard (Class H available upon request), with built-in PTC thermistors or PT100 temperature sensors for continuous winding protection.
- Branding & Colors: Custom OEM nameplates, laser-etched serial numbers, and custom paint color coding.
How do oil-immersed distribution transformers perform in outdoor and harsh tropical environments?
Our 30KVA to 100KVA+ oil-immersed distribution transformers are specifically built for severe environmental resilience. The transformer tank is hermetically sealed or equipped with a conservator featuring moisture-absorbing silica gel breathers to prevent atmospheric oxidation of the insulation oil.
High-grade mineral oil acts as both a superior dielectric medium (breakdown voltage >45kV-60kV) and an effective thermal conductor. Cooling radiator fins dissipate heat naturally via ONAN convection. Exterior surfaces are treated with multi-stage shot blasting and anti-corrosive epoxy primer/polyurethane topcoats, resisting saline humidity, UV radiation, and ambient tropical temperatures exceeding 50°C.
What are the typical lead times, MOQ, and export shipping standards for international orders?
Our standard Minimum Order Quantity (MOQ) is flexible depending on unit capacity. Standard YE3 motors and TNS stabilizers maintain a typical production lead time of 10 to 15 business days. Custom-engineered high-power transformers or specialized VFD cabinets take approximately 20 to 25 days.
All export products are packed according to international ISPM 15 heat-treated wooden crate standards. High-value electrical components are vacuum-sealed in moisture-barrier foils with silica desiccant bags to prevent corrosion during long ocean transit. Full documentation including Factory Inspection Certificates, Type Test Reports, CE Declarations, and Certificates of Origin (Form E/CO) are included with every shipment.
Request Direct Factory Quotations & Technical Catalogs
Partner directly with China's leading three-phase electrical machinery manufacturer. Connect with our senior application engineers to review your project specifications, request OEM customization, or get instant bulk wholesale pricing.
Get Catalog
