State of China's Step-Down Transformer & Rectifier Industry
As global industrial electrification, electrochemical processing, renewable energy storage, and smart grid infrastructures accelerate, China has cemented its position as the premier manufacturing hub and exporter of heavy-duty step-down transformers and electrical rectifiers. This whitepaper provides procurement directors, EPC contractors, and electrical engineers with an exhaustive technical evaluation of China's top step-down manufacturing capabilities, product performance metrics, compliance standards, and future procurement benchmarks.
China's Leading Step-Down Transformers & Rectifiers
Explore our top-tier engineering solutions designed for high-current electroplating, traction substations, excitation control, cathodic protection, and industrial AC/DC power step-down applications.

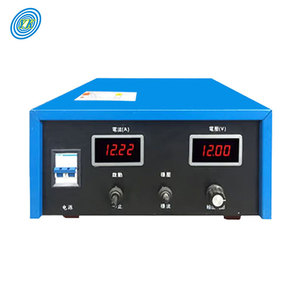

YUCOO Plating Rectifier 220v AC to 12v DC (50A - 1000A)

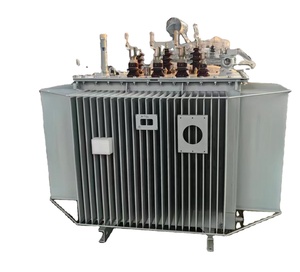

Factory Direct Three-Phase Control Electrical Rectifier Transformer

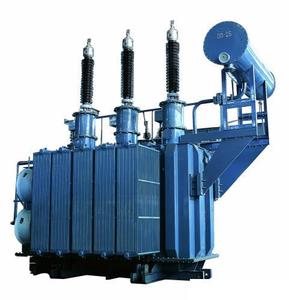

Oil-Immersed High Current 6300kVA Cathodic Protection Transformer

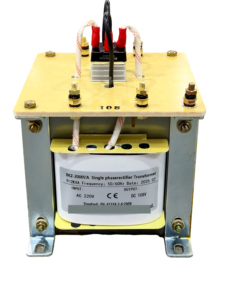

380V/220V to Multi-Voltage Single-Phase Control Transformer

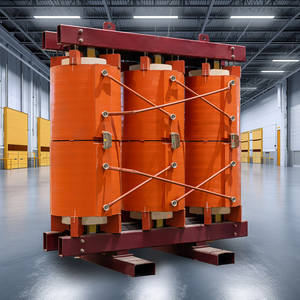

CEEG ZQSC(H)B 2000kVA/10kV Epoxy Cast Traction Dry-Type Transformer

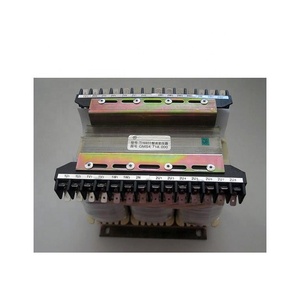

Original T6 Power Rectifier Transformer TI16933 for Excitation Systems

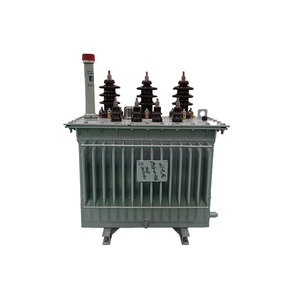

33kV High-Voltage Control 300kVA to 1MW Sealed Rectifier Transformer
Industrial 3-Phase Step-Down / Step-Up Rectifier (50kVA - 3000kVA)
Why Choose China's Leading Step-Down Export Manufacturers?
China's top step-down transformer factories combine state-of-the-art automated winding technology with stringent quality assurance systems. Based on over 17 years of specialized manufacturing experience, our production lines strictly adhere to international engineering benchmarks including IEEE C57, IEC 60076, and IS 1180 Amendment 1.
Advanced Core Fabrication
Utilizing high-grade cold-rolled grain-oriented (CRGO) silicon steel laminations with 45-degree mitered step-lap joints. This cuts no-load energy losses by up to 28% while substantially suppressing magnetostrictive audible noise levels.
Harmonic Mitigation Engineering
Industrial rectifiers inevitably inject high-order harmonics back into the supply grid. Our step-down rectifier transformers integrate phase-shifting secondary windings (12-pulse, 18-pulse, and 24-pulse systems) to cancel THD (Total Harmonic Distortion) directly at the source.
Rigorous EHV/HV Testing Protocols
Every export unit undergoes comprehensive factory acceptance testing (FAT), including Impulse Voltage Withstand, Dissolved Gas Analysis (DGA), Tan Delta Insulation Loss Factor, Partial Discharge measurement (<10pC), and full-load temperature rise validation.
Standard Technical Loss Profile for Industrial Step-Down Units
The following data visualization details the maximum total loss parameters across standard 11kV to 400V step-down transformer capacities under international efficiency ratings (Level 1 to Level 3).
| Rating (kVA) | Impedance (%) | Efficiency Rating | 50% Load Max Loss (W) | 100% Load Max Loss (W) | Primary Application |
|---|---|---|---|---|---|
| 250 kVA | 4.50% | Level 3 (Ultra-High Efficiency) | 920 W | 2,700 W | Commercial & Small Factory Step-Down |
| 500 kVA | 4.50% | Level 3 (Ultra-High Efficiency) | 1,430 W | 4,100 W | Industrial AC/DC Rectification Systems |
| 1,000 kVA | 5.00% | Level 3 (Ultra-High Efficiency) | 2,620 W | 7,000 W | Heavy Electroplating & Chemical Electrolysis |
| 2,000 kVA | 6.25% | Level 3 (Ultra-High Efficiency) | 4,790 W | 14,100 W | Metro Traction Substations (Dry-Type ZQSC) |
| 3,000 kVA+ | 6.25% - 8.00% | Level 3 Custom Heavy-Duty | 5,900 W | 17,500 W | High-Current Cathodic & Arc Furnace Transformers |
Future Procurement Trends for Step-Down Rectifiers & Transformers
Analyzing global trade data, supply chain transformations, and industrial ESG mandates reveals key shift factors governing future procurement strategies for step-down power conversion hardware.
1. Widespread Adoption of Cast Resin Dry-Type Units for Urban & Indoor Substations
Due to stricter fire safety mandates (such as NFPA 70 standards and EU EcoDesign Directive), industrial buyers are pivoting away from traditional oil-immersed units toward epoxy cast resin dry-type transformers (such as the CEEG ZQSC series) for indoor step-down and traction applications. Dry-type units eliminate oil-spill risks, provide self-extinguishing flame resistance, and significantly lower lifetime civil maintenance costs.
2. Integration of High-Frequency Digital Rectification (IGBT/SCR Hybrids)
Traditional diode-bridge step-down rectifiers are increasingly replaced by active-front-end Silicon Controlled Rectifiers (SCR) and IGBT-based switch-mode rectifiers (like YUCOO 220V AC to 12V DC power units). Modern electroplating, water treatment, and green hydrogen electrolysis plants demand precise current control (<0.1% accuracy), rapid dynamic response times, and near-unity power factor across variable load profiles.
3. Modular & Factory-Integrated Compact Substations (CSS)
EPC contractors are aggressively moving away from complex on-site transformer assembly toward factory-built Compact Substations. Integrating step-down transformers, high-voltage ring main units (RMU), low-voltage distribution switchgear, and protective relays within single transportable enclosures cuts field installation schedules by up to 65%.
4. Natural & Synthetic Ester Fluid Transition for Heavy Oil Units
For high-capacity step-down units (such as 6300kVA cathodic protection transformers and 33kV sealed units), global environmental regulations are accelerating the replacement of mineral oil with biodegradable vegetable-based ester liquids. Ester fluids offer significantly higher flash points (>300°C), preventing thermal oxidation and extending paper insulation operating lifespan.
Future Technological Horizons in Step-Down Manufacturing
What innovations will define the next generation of step-down voltage transformation and electrical rectification? China's leading R&D centers are focusing on three core pillars:
Smart Online Condition Monitoring (IoT & AI DGA)
Future step-down units are evolving from passive iron-and-copper assemblies into smart digital nodes. Integrated optical fiber temperature sensors, real-time Dissolved Gas Analysis (DGA) hydrogen/acetylene monitors, and vibration sensors upload telemetry continuously to cloud-based predictive maintenance dashboards, preventing catastrophic failures before they occur.
Solid-State Transformers (SST) & Wide-Bandgap Semiconductors
The convergence of silicon carbide (SiC) power devices and high-frequency magnetics is giving rise to Solid-State Step-Down Transformers. Operating at multi-kilohertz frequencies, SSTs dramatically reduce magnetic core volume and weight by up to 70% while offering instantaneous bidirectional power flow control.
Ultra-Low-Loss Amorphous Alloy Magnetic Cores
The deployment of non-crystalline amorphous alloy metals in step-down transformer cores reduces no-load core losses by a staggering 70-80% compared to conventional CRGO steel. As carbon tax policies tighten globally, amorphous core step-down units represent the ultimate benchmark in industrial energy conservation.
Direct-from-Factory OEM & Export Excellence
When sourcing step-down transformers and power rectifiers from top Chinese manufacturers, international clients benefit from unmatched supply chain integration, rigorous quality management systems, and complete custom engineering support.
Full ISO 9001, ISO 14001 & OHSAS Compliance
Our automated production lines are governed by rigorous quality control checkpoints, ensuring flawless mechanical construction, dielectric strength, and environmental safety.
Custom Engineering & Tailored Voltage Vectors
From unusual step-down ratios (e.g., 33kV to 110V, 380V to 6V multi-tap) to custom IP65 weatherproof enclosures and forced water cooling (WF), our R&D engineers deliver bespoke solutions built to exact project specifications.
Turnkey Export Logistics & On-Site Support
We handle export seaworthy packaging, nitrogen-purged shipping for large oil transformers, customs compliance documentation, and offer global field engineer commissioning assistance.
Complete Lifecycle After-Sales & Retrofitting
Providing routine oil testing analysis, spare parts replenishment, tap-changer maintenance kits, and retrofitting services to guarantee maximum asset uptime for decades.
Need custom step-down engineering drawings or direct factory price quotes?
Get a QuoteStep-Down Transformer & Rectifier Sourcing FAQs
Detailed answers to essential technical and procurement questions asked by global industrial buyers, project managers, and electrical engineers.
Q1: What is the technical difference between a standard step-down transformer and a step-down rectifier transformer?
A standard step-down transformer simply reduces AC voltage from a higher primary level (e.g., 33kV, 10kV, or 380V) to a lower secondary AC voltage level (e.g., 400V, 220V, or 48V) while preserving the sinusoidal AC waveform. A step-down rectifier transformer, however, is specifically engineered to feed semiconductor rectifiers (such as diodes or thyristors) that convert AC to DC. Rectifier transformers feature reinforced mechanical winding structures to withstand severe electromagnetic forces caused by high current harmonics, specialized vector phase-shifting (e.g., Dyn11, Ynd11, or 12-pulse star/delta configurations), and heavy duty thermal dissipation designs.
Q2: How do I select between an Oil-Immersed and a Cast Resin Dry-Type Step-Down Transformer?
Selection depends primarily on installation environment, capacity requirements, and fire safety regulations:
• Cast Resin Dry-Type (e.g., CEEG ZQSC series): Best suited for indoor environments, high-rise commercial structures, underground transit tunnels, and chemical plants where fire safety is paramount. Dry-type units require minimal maintenance and eliminate oil pollution risks.
• Oil-Immersed (e.g., 6300kVA cathodic protection or 33kV units): Recommended for high-capacity outdoor applications, extreme ambient temperatures, and heavy industrial facilities where maximum cooling performance, overload capacity, and long-distance outdoor durability are required.
Q3: Why are phase-shifting secondary windings important in industrial rectifiers?
Industrial rectifiers draw non-linear currents, generating harmonic currents (5th, 7th, 11th, 13th, etc.) that distort the supply grid voltage. By implementing phase-shifting secondary windings (such as a 30° phase angle offset between delta and wye windings in a 12-pulse transformer setup), harmonic current pairs cancel each other out. This dramatically lowers Total Harmonic Distortion (THD) to under 5%, complying with IEEE 519 standards and preventing overheating in upstream power distribution equipment.
Q4: What key parameters must be provided when requesting a custom step-down rectifier quote?
To receive an accurate engineering design and factory quote, please specify:
1. Primary Input Voltage & Frequency: (e.g., 33kV, 10kV, 380V, 220V; 50Hz or 60Hz).
2. Secondary DC Output Requirements: Output DC Voltage (V) and Continuous Current Rating (A).
3. Duty Cycle & Application Type: (e.g., Continuous Electroplating, Intermittent Welding, Traction Power, Cathodic Protection).
4. Cooling Method & Enclosure Rating: (e.g., AN, AF, ONAN, ONAF; IP20 indoor vs. IP65 outdoor).
5. Tap Changer Requirement: Off-Circuit Tap Changer (OCTC) or On-Load Tap Changer (OLTC).
Q5: How do top Chinese exporters ensure international quality compliance and warranty protection?
Leading Chinese export manufacturers operate strictly under ISO 9001 quality management systems. All materials—from oxygen-free copper conductors to high-permeability CRGO core steel—are source-verified. Products undergo comprehensive Routine Tests, Type Tests, and Special Tests according to IEC 60076, IEEE, and CE standards before shipment. Standard export equipment comes backed by a 12 to 24-month comprehensive factory warranty, extended service lifetime support, and technical remote or on-site commissioning guidance.
Partner with China's Premier Step-Down Transformer Exporter
From high-current electroplating rectifiers to 33kV industrial step-down substations, our engineering team delivers standard and custom power conversion solutions with guaranteed factory pricing and fast global shipping.
Get a Quote
